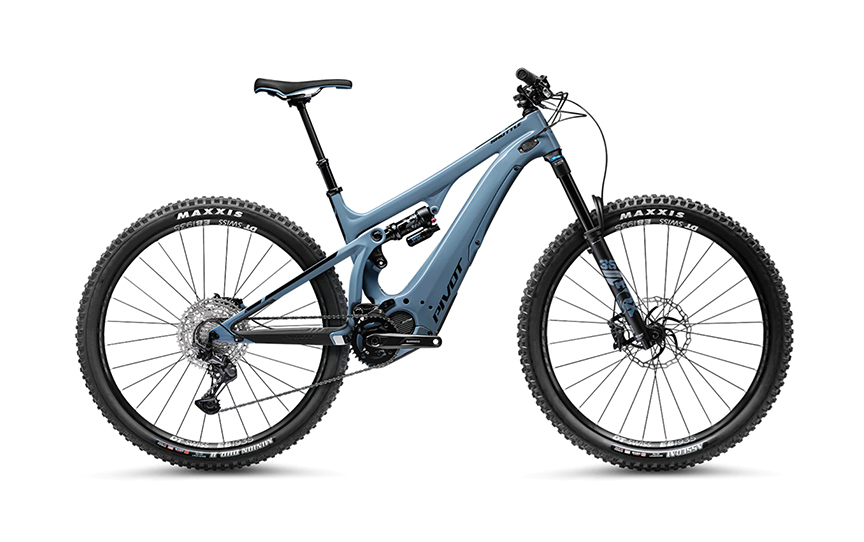

Pivot Cycles Shuttle Ride SLX/XT - M - 2022

Pivot Cycles Shuttle Ride SLX/XT - M
$9,599.00
Please select options
This product is not available for online purchase. Please call us or visit our store.

Details

Sleek, lightweight, capable, beautifully crafted, with the motor and battery seamlessly integrated into its design, the Shuttle ushered in a whole new way of riding. Now, the redesigned Shuttle has the juice to take your riding even further. A sophisticated carbon fiber chassis houses an equally sophisticated Shimano EP8 drive unit and a massive 726Wh battery. Progressive geometry, highly evolved dw-link suspension and a brawny Fox fork offer unmatched suspension performance and handling. The Shuttle has the power to take you where you dream of going and give you the ride of your life getting there and back.

SPECS:

Class 1: Pedal Assist
Motor: Shimano STEPS EP800
Battery: Integrated, removable via two bolts
Battery Capacity: 726Wh
Display/Remote: Shimano STEPS
Modes: Boost, Trail, Eco, Walk Assist
Max Speed with Assist: 20 mph (32 km/h)
Frame Material: Carbon Fiber
Rear Shock: FOX FLOAT X Performance, 210mm x 50mm, 140mm travel
Fork: FOX FLOAT 38 Performance E-MTB, GRIP damper, 44mm offset, 160mm travel
Head Tube Diameter: Tapered, 1.125" top, 1.5" bottom
Headset: Pivot Precision, sealed cartridge bearings, ZS44/56
Handlebar: Phoenix Race Low Rise Aluminum
Stem: Phoenix Team Enduro/Trail
Grips: Phoenix Factory, lock-on
Brakes: Shimano SLX M7120, 4-piston, Galfer rotors (203mm front, 180mm rear)
Brake Levers: Shimano SLX M7120
Shifters: Shimano SLX M7100, 12-speed
Rear Derailleur: Shimano Deore XT M8100, 12-speed, SGS cage
Chainguide: Upper slider
Cranks: Shimano EM600 E-MTB
Chainrings: Shimano E-MTB, 34-tooth
Chain: Shimano Deore M6100, 12-speed
Cassette: Shimano Deore M6100, 12-speed, 10-51 tooth
Rims: DT Swiss EB 1935 wheelset, 30mm width
Hubs: DT Swiss EB 1935 wheelset, 15x110mm Boost front, 12x157mm SuperBoost+ rear with Micro Spline driver
Spokes: DT Swiss EB 1935 wheelset
Front Tire: Maxxis Assegai, 3C, EXO+, TR, 29" x 2.5”
Rear Tire: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 29" x 2.4”
Saddle: Pivot Pro E-Bike
Seatpost: KS Rage-i dropper
Drop: 125mm (SM), 150mm (M-L), 170mm (XL)
Seatpost: Diameter 30.9mm
Seatpost Clamp: Single bolt
Rear Dropout / Hub Dimensions: 12x157mm SuperBoost+
