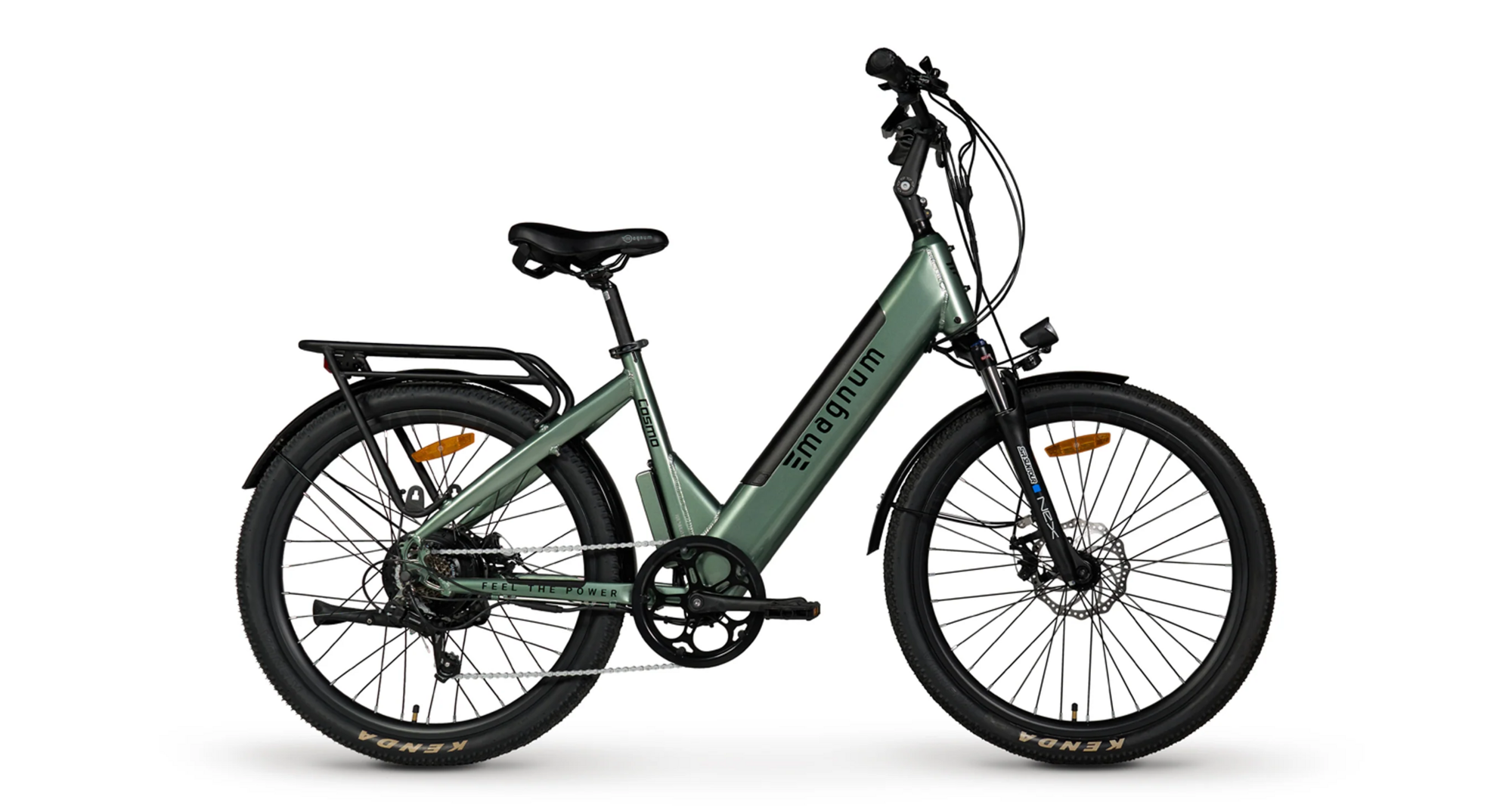

Magnum Bikes Cosmo

Magnum Bikes Cosmo
This item is currently not available.


The Magnum Cosmo is a budget-friendly option in our popular Cosmo series. The Cosmo has a light low step frame with a fully integrated battery. The power system is 48 Volts running on a 500 Watt motor and a 10Ah battery for the range and power you need to run errands or go on a relaxing bike ride.

- Category: Touring
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: Low-step
- Seating: Relaxed
- Perfect For: Paved / Light Trails / Recreation

The heart of the Magnum Cosmo is the integrated, long-range 48V / 10Ah / 480Wh Samsung battery that powers rides up to 40 miles long, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

- 40 Miles (64 Kilometers) Max Range
- 5 Hours Charge Time

Low-step geometry

Designed and built with the city and commuter cyclist in mind, the low-step frame design is a breeze to mount and dismount, and it comes in stylish colors with a sleek, integrated battery.

Seat Tube18" (46 cm)
Reach 14.75" (37.5 cm)
Stand Over Height 22.5" (57 cm)
Virtual Top Tube Length 22" (56 cm)
Min Saddle Height 21.75" (55 cm)
Max Saddle Height 28" (71 cm)
Width 25.75" (65 cm)
Wheelbase 43.5" (110 cm)
Length 69.75" (177 cm)
Total Weight 57.33 lbs (26 kg)
Battery Weight 8 lbs (3.9 kg)
Recommended Minimum Rider Height 5'0"


Fork SR Suntour NEX Suspension Fork with Lockout and Preload Adjustment
Stem Adjustable Alloy
Tires Innova 26" x 2.1"
Brakes Mechanical Disc Brakes
Saddle QF Saddle Black
Crankset Aluminum Alloy, 52T, 170mm
Shifters Shimano 6-Speed
Tape/Grips Ergonomic Faux Leather Black
Accessories & Extras Rear rack, front and rear lights included, Kickstand: Single-Leg Center-Mount, Front Carrier, Front and Rear
Motor Bafang Rear Hub-Drive 500W Nominal Output. 25 mph with Pedal Assist, 20 mph with Throttle.
Pedals Wellgo
Battery 48V, 10Ah, 480Wh
Charger 20-35miles per charge.
Controller/Display Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD. Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time. Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode.

* Subject to change without notice.
